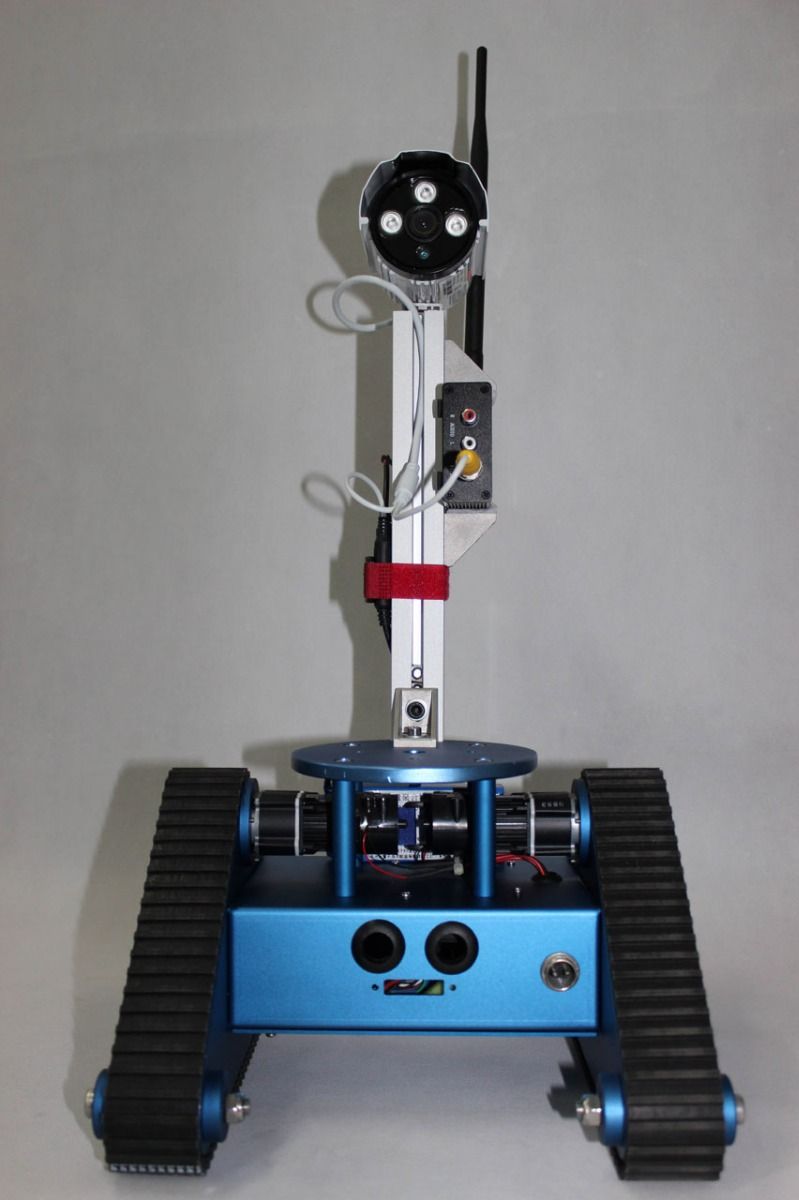

KR0005 RC Tri-Tracked Tank Mobile Robot Kit with Camera
1 899,00 €
This is an extension kit base on RC Tri-Tracked (remotely-controlled triangle) tank mobile robot kit which used an aluminum extrusion fix on top plate to mount a camera moves on caterpillar tracks. A video stream about exploring the environment was taken by camera is transmitted to a computer or lap-top. The kit can be controlled remotely via a joystick. Artikelnummer: KR0005
Availability:
In stock
SKU
4169
This is an extension kit base on RC Tri-Tracked (remotely-controlled triangle) tank mobile robot kit which used an aluminum extrusion fix on top plate to mount a camera moves on caterpillar tracks. A video stream about exploring the environment was taken by camera is transmitted to a computer or lap-top. The kit can be controlled remotely via a joystick.
The kit comes with following parts
- 2 rubber tracks
- 2 DC motors
- 1 Joystick
- 1 Camera
- 1 Aluminum extrusion
- 1 12V, 3500mA lithium battery
- 1 12V charger
Specifications
- Dimensions: 300mm x 260mm x 172mm
- Distance between bottom and ground: 43mm
- Chassis material: Aluminum alloy
- Color: Blue
- Speed: 0.4m/s
- Net weight: 6kg
- Load capacity: 8.5kg
DC motor specifications
- Type: Faulhaber 12V DC Coreless Motor
- Power: 17W
- No Load Speed: 8100RPM/minute
- Reduced Speed: 120RPM/minute
- Diameter: 30mm
- Length: 42mm
- Total Length: 85mm
- Diameter of Shaft: 6mm
- Length of Shaft: 35mm
- No Load Current: 75mA
- Load Current: 1400mA
- Gearbox Ratio: 64:1
| Marca | King Kong Robot |
|---|---|
| Color | blu |
| Anchura (cm) | 26 |
| Altura (cm) | 17,2 |
| Longitud (cm) | 30 |
| Peso | 6.000000 |
